CHLORINE DIOXODE GENERATOR
Category: Customised Dosing Systems
Features
- Automatically compensate for the change in feed with fuzzy logic, the most accurate & stable controller.
- level switch interlock
- Specially designed activator chamber for stabilized chlorine dioxide
- Auto voltage regulator (optional)
- 3.5" LCD display
- built-in arv with separate discharge point to prevent chemical spillage
- IoT-enabled process monitoring (optional)
Scope of supply
- Metering pump - 2 nos (3 Lph at 4 kg/cm2)
- suction/discharge tubing 3 meters (4/6 mm)
- Suction filter cum foot valve
- injection valve/back pressure assembly
- pH/ORP sensors with holder

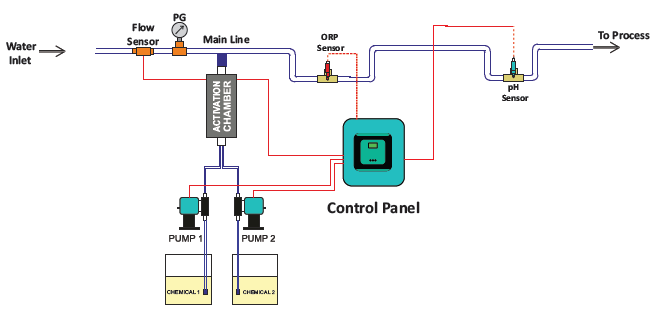

schematic
.png)
